Overview

Security is a top priority at Chata.ai. This page walks through the architecture options available across AutoQL's deployment models, and the security model that protects your data at every layer, regardless of which deployment model you choose.

We take several measures to help ensure every implementation of AutoQL is secure and meets the highest standards of data protection.

AutoQL Security Architecture is built on four foundational layers:

• Integrator Partner Security & Network Connectivity – Secure communication protocols between partner systems and AutoQL.
• Customer-Level Security – JSON Web Token (JWT)-based authentication ensuring customer data isolation, so each customer's data stays fully separated from every other's.
• User-Level Security – Unique Customer ID with role-based access control (RBAC) or access control list (ACL)-based access control, restricting exactly what each user can see and do.
• Database-Level Security – Defence in depth protecting data at the storage layer, so a breach at one layer doesn't expose the rest.

Architecture Across Deployment Models

AutoQL offers flexible deployment models designed to align with varying security, data residency, and infrastructure requirements. Organizations can deploy AutoQL natively within their private cloud environment or consume it as a managed service via an API integration.

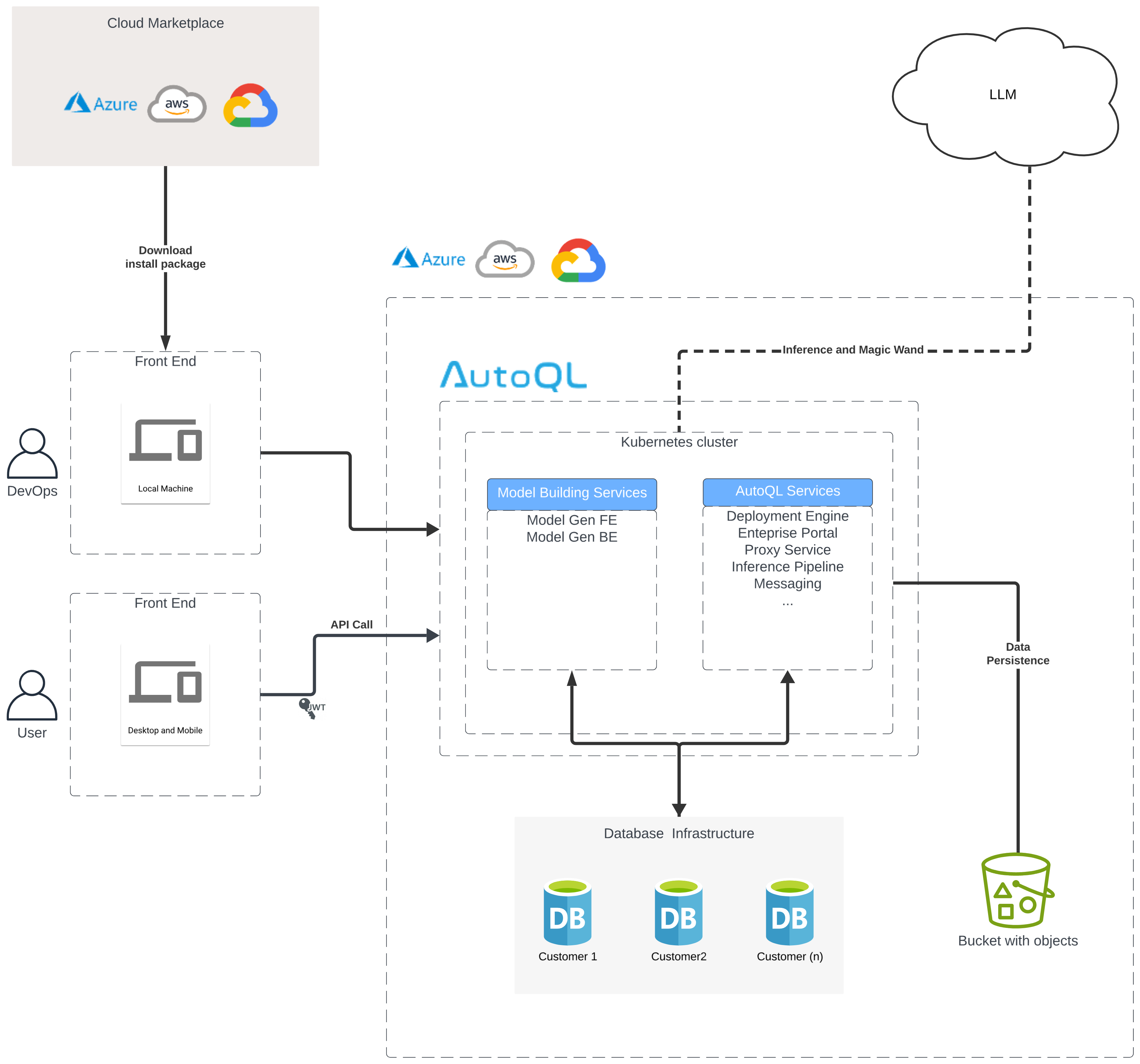

▪️ Deployable Kubernetes Architecture (Customer-Managed)

AutoQL is a Kubernetes application deployable on the cloud of the customer's choice. The only installation requirement for the AutoQL deployable Kubernetes application is the cluster itself. A cloud administrator provisions the cluster, downloads the installation scripts, and deploys AutoQL.

Once deployed to the customer cloud, AutoQL users can then configure the application to make connections to desired data sources and build their language model. Most data source connections are within the customer cloud, so no data ever leaves the premises; all queries remain behind the customer firewall, and existing security and audit policies remain in effect throughout.

Key Benefits

• All processing and data remain inside your infrastructure.
• No sensitive data leaves your environment.
• You manage security, compliance, and operational policies.
• Operates within your firewall and network boundaries.

Security in AutoQL Deployable Model

• User-Level Access Control – Unique Customer ID with role-based (RBAC) or access-list (ACL) authority. Compatible with most identity providers (IDP) and supports multi-factor authentication (MFA).
• Network Security – Integrator Partner Security protocols for external integrations.
• Audit & Logging – Full query history and access logging within your environment.
• Data Governance – Metadata and configuration management on your infrastructure.

▪️0

For Chata.ai integrator deployments, all communication with Chata.ai takes place through a REST-based HTTPS API deployed in a managed Cloud Endpoint offering, or through a secure network-to-network connection. Since Chata.ai runs entirely inside of a managed cloud platform, we are protected holistically by the cloud service provider's enterprise-grade security policy.

The diagram above depicts the flow of information between Integrators, Chata.ai’s services, and End Users’ devices.

Data Management

• The platform stores only the limited data necessary to support service functionality, including:
  • Metadata and configuration information
  • Query history for optimization and audit purposes
  • Customer-specific settings and integrations
• All data is associated with a unique Customer ID and is cryptographically isolated, meaning one customer's data is never accessible to another, even within shared infrastructure.
• Data is refreshed on a configurable schedule.
• All management occurs through the AutoQL Integrator Portal.

Security model

Integrator Partner Security & Network Connectivity

There are two ways Integrators communicate with AutoQL by Chata.ai:

• through direct network-to-network communication, and
• directly through the API.

Both methods of communication are required and are used for different purposes.

1. Network Communication

All of Chata.ai’s systems live in a Virtual Private Cloud (VPC) within a managed Cloud Platform. None of the services or virtual machines have external IPs, so communication is set up through a whitelisted IP address. All communication is initiated from Chata.ai, and no inbound communication initiation is allowed, regardless of the method used.

Configure an SSL pipe via whitelisted IPs. Chata.ai uses managed cloud NAT (network address translation) to manage this capability. Our NAT implements outbound NAT in conjunction with a default route, allowing Chata.ai to reach the internet. Inbound NAT is not implemented. Hosts outside of the Chata.ai VPC network can only respond to established connections initiated by Chata.ai services; they cannot initiate their own new connections to AutoQL VPC instances via NAT.

2. Chata.ai's AutoQL API

All communication initiated by a user employs Chata.ai's AutoQL API, whether it is through our complimentary front-end components like Data Messenger or Dashboards, or in cases where an Integrator has implemented the API themselves. Chata.ai’s RESTful endpoints are deployed and managed by a managed cloud endpoint service. Leveraging managed cloud services provides both Chata.ai and the Integrator with cutting-edge security, monitoring, and availability. Detailed information on how we control access is available in the following section.

Customer-Level Security

Protecting Customer and User data on behalf of our Integrators is of paramount priority at Chata.ai. In this section, we detail how we ensure data cannot cross customer organizations, and how we ensure no malicious activity can happen on your integration. Our authentication is based on Google’s API best practices.

When an Integrator is added to Chata.ai's AutoQL API, a service account and Integrator Key is generated. The Integrator Key is shared with the Integrator. The calling services use the service account’s private key to sign a secure JSON Web Token (JWT). Libraries are available from Google or other open source providers for seamless implementation. The steps of this flow are outlined as follows.

1. Chata.ai creates a Service Account and API Key for the Integrator System to use.
2. Chata.ai REST API supports authentication through our Managed Endpoints service.
3. The Integrator implements the JWT libraries into their backend services:

• Create a JWT Token and sign it with the Service Account’s private Key. Note: The JWT includes Customer ID, User ID, and endpoints granted to access.

4. Depending on the front-end implementation option you have opted to use, one of the following flows will take place:

• If using open source components offered by the Chata.ai team (AutoQL widgets), send the signed JWT back to the AutoQL Widgets
• If directly using the API, call the appropriate API endpoints with the JWT

The Integrator needs to guarantee the User’s identity is authenticated and authorized before signing a secure JWT.

User-Level Security

The last step in our security journey is to ensure a customer can only communicate with their database in a single-tenancy environment, or with specific data when in a multi-tenancy environment.

When a customer is added to Chata.ai by an Integrator, the first step will be to generate a unique Customer ID via the AutoQL Integrator Portal. When setting up the Customer, required database connection information will also need to be configured.

For each query request, the Integrator needs to generate the JWT that includes the following information:

• Customer ID – determines which database the user is allowed to query
• User ID – identifies the unique user permissions in the database
• Resource access – ensures Integrator segregation by identifying the endpoints unique to each Integrator

All the information is signed with the private key of the service account, which cannot be altered.

Since not all Customer Users will have access to the entire database, Chata.ai has implemented user-level authority. We currently support role-based authority or ACL-based authority. How this is implemented is highly dependent on the Integrator System. Other methodologies will be considered for implementation on an as-needed basis.

When a User is querying, a payload with Customer credentials is passed to Chata.ai. These credentials allow Chata.ai to identify the correct database, along with proper authority on the data. The setup and flow can be seen in the following diagram.

Data Storage

One question that we often encounter is, “Does Chata.ai store my data?” Chata.ai stores a minimal amount of data; the nominal data identified in the database that people may want to ask questions on. An example of one of these questions could be “How many of each item did Jane Doe buy last month?” In this example, we would store the information that “Jane Doe” exists in the user’s data.

Since users will ask questions pertinent to their unique data, we need to store the metadata in Chata.ai’s cloud environment so the proper database query can be generated dynamically. The data is stored and accessed via the Customer ID as noted in the previous section. This data is refreshed on a configurable timeframe and managed from the AutoQL Integrator Portal.
